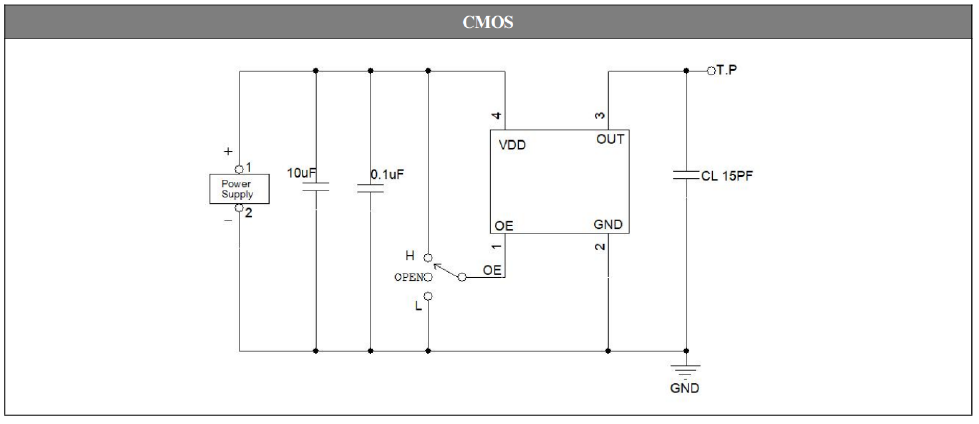

Test Circuit for Crystal Oscillators of CMOS Output

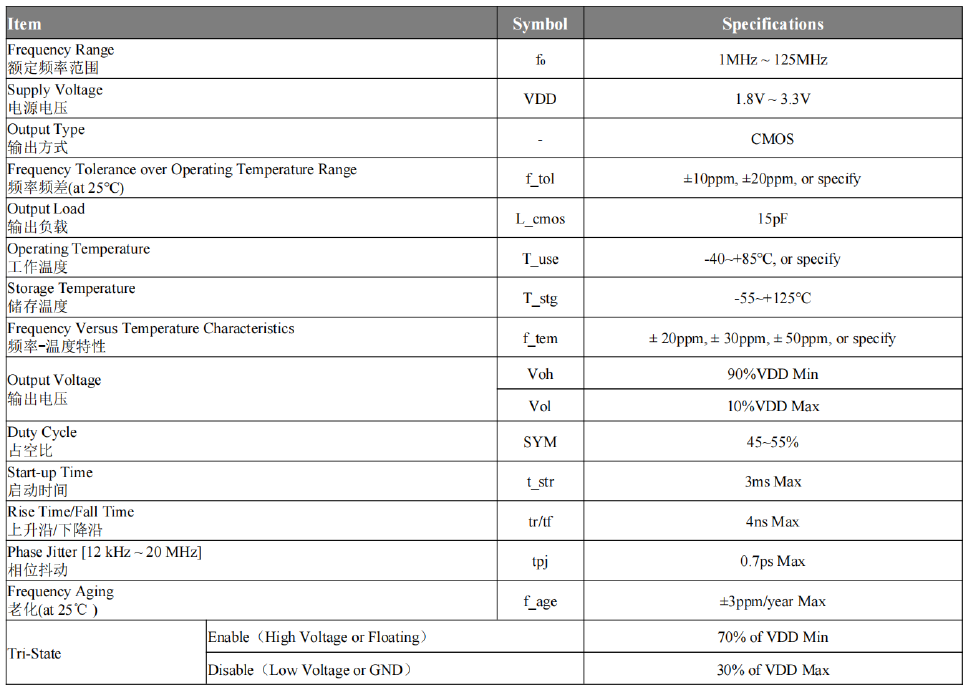

Specifications for  Crystal Oscillators of CMOS Output

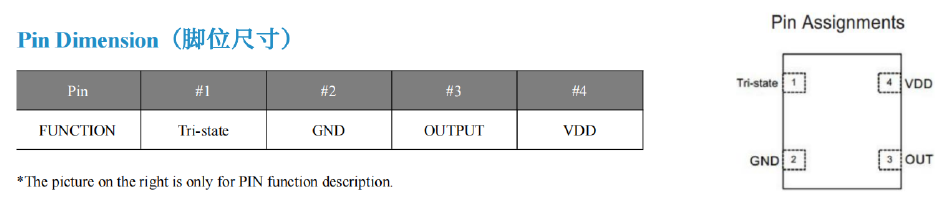

Pin Dimensions and Assignments for  Crystal Oscillators of CMOS Output

拓展阅读：

Clock Oscillators SPXO 时钟振荡器 SPXO
Simple Packaged Crystal Oscillators简易封装晶体振荡器

A crystal clock oscillator (sometimes referred to as a ‘Simple Packaged Crystal Oscillator’ or SPXO) is a ‘plug and play’ quartz crystal. It combines a quartz crystal resonator with an oscillator circuit in a single package to provide a fully functioning stand-alone oscillator circuit. SPXOs are used in many applications including telecommunications, industrial and consumer electronics.

晶体时钟振荡器（有时亦被称为“简易封装晶体振荡器”或 SPXO）是一种“即插即用”的石英晶体。它通过将石英晶体谐振器与振荡器电路集成于单个封装中，从而提供一种功能完备的独立振荡器电路。SPXO被广泛应用于诸多领域，包括电信、工业及消费电子产品。
