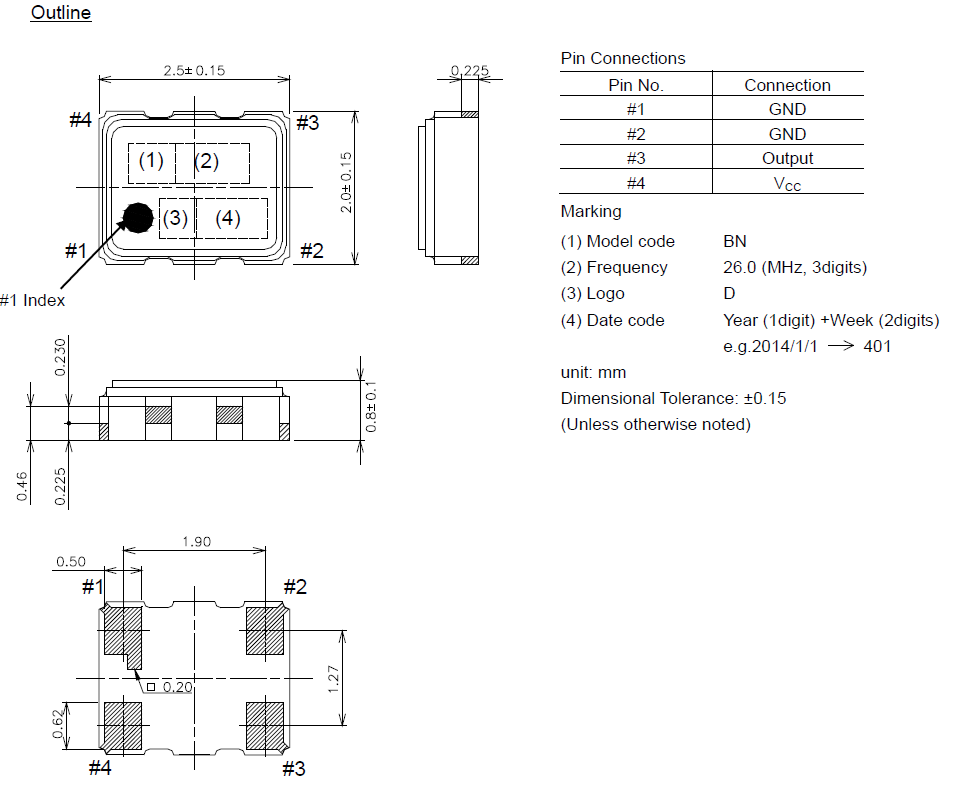

（晶振料号1XXB26000MAA 26MHz TCXO2520温补晶振尺寸及引脚功能说明）

关于晶振料号1XXB26000MAA 26MHz TCXO2520温补晶振规格参数，晶诺威科技说明如下：

Main Characteristics 主要参数

1. Device Name产品名称: TCXO2520

2. Model Name晶振型号: DSB221SDN

3.Spec No. 晶振料号: 1XXB26000MAA

4..Nominal Frequency标称频率:26.000 MHz

5.Supply Voltage输入电压: 1.8~2.8V

6.Frequency Stability vs Temperature 温度频差:±0.5ppm vs Ta=-30~+85℃

7.Output Waveform输出波形 : Clipped sine wave 削峰正弦波

8. Mass净重: 0.02g max.

Absolute Maximum Ratings 绝对值

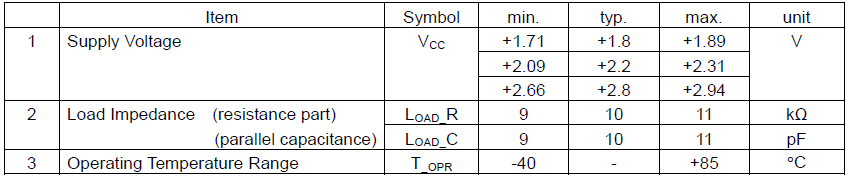

Recommended Operating Conditions 建议工作条件

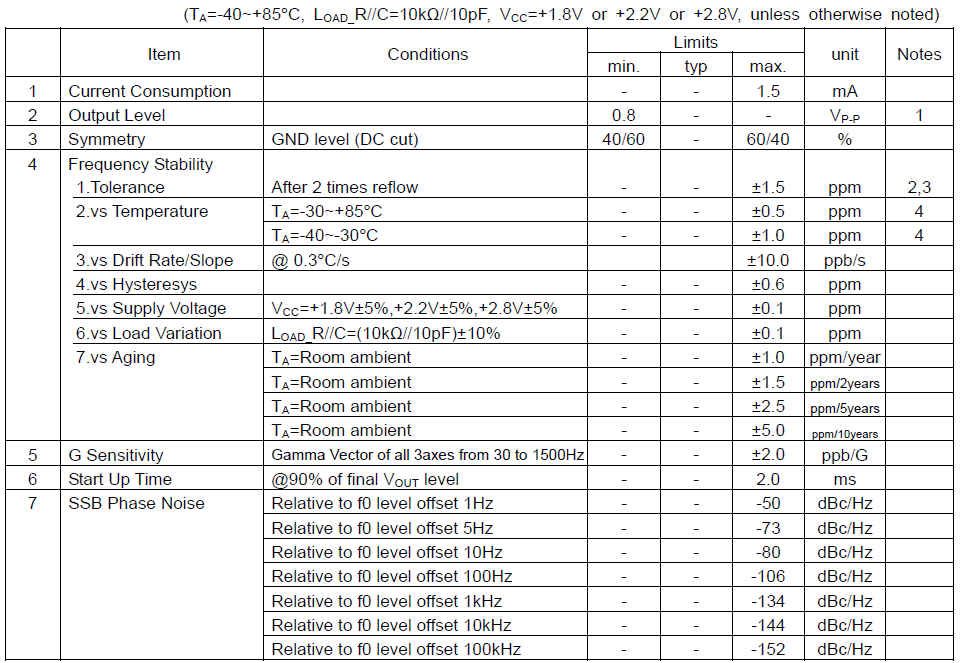

Specific Electrical Characteristics 电气参数详情

Notes
1. Clipped sine wave(DC-coupled)
2. Ref. to nominal frequency
3. Please leave after reflow in 2h or more at room ambient.
4. Ref. to frequency (TA=+25℃)

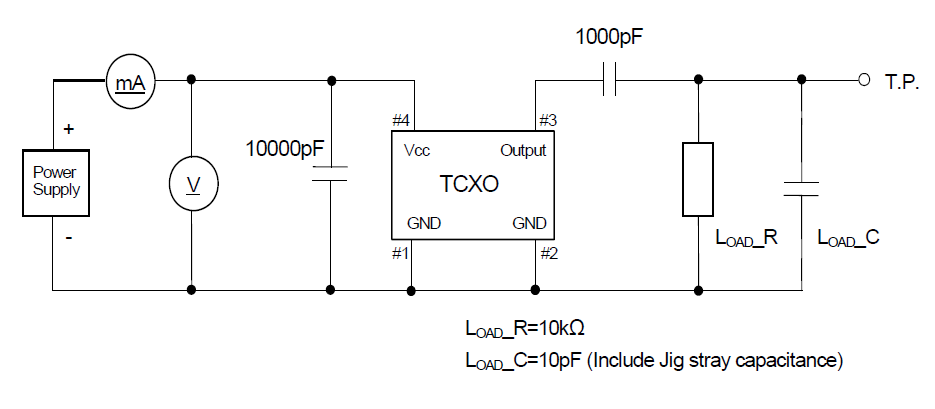

Measurement Circuit 测试电路

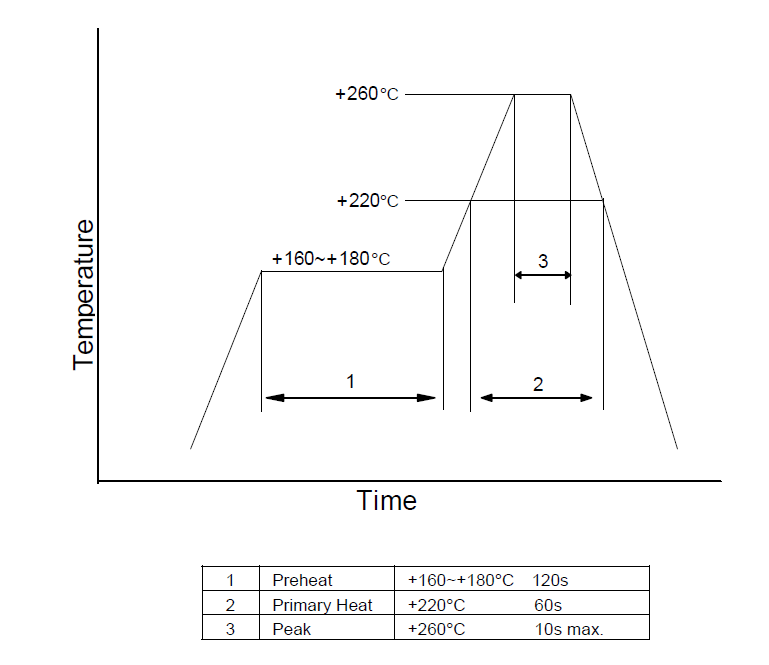

Reflow Profile for TCXO2520 26MHz 回流焊作业建议
