About the equivalent series resistance (ESR) of the crystal

The ESR describes the ohmic resistance in the equivalent circuit represented by the quartz crystal at resonance. Data sheets normally specify a maximum ESR that the manufacturer undertakes not to exceed.

This “ESR max.” directly affects the oscillation safety factor (OSF) of the circuit and should therefore be as low as possible.

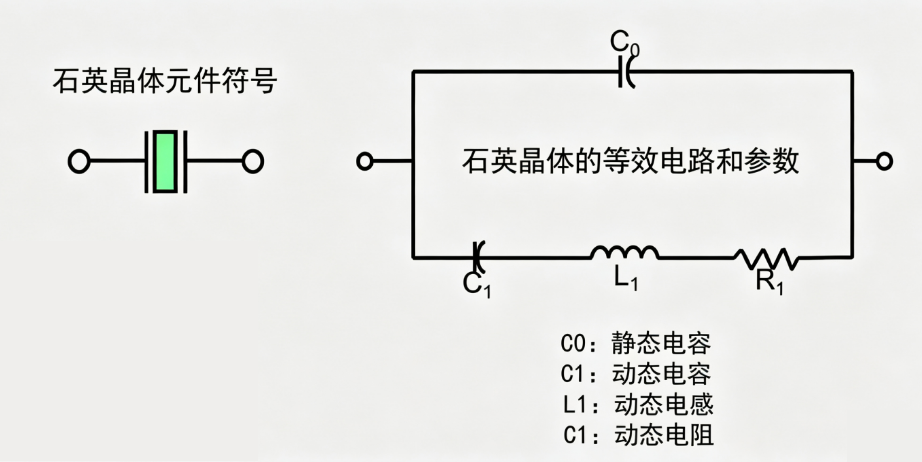

石英晶体的等效电路和参数
