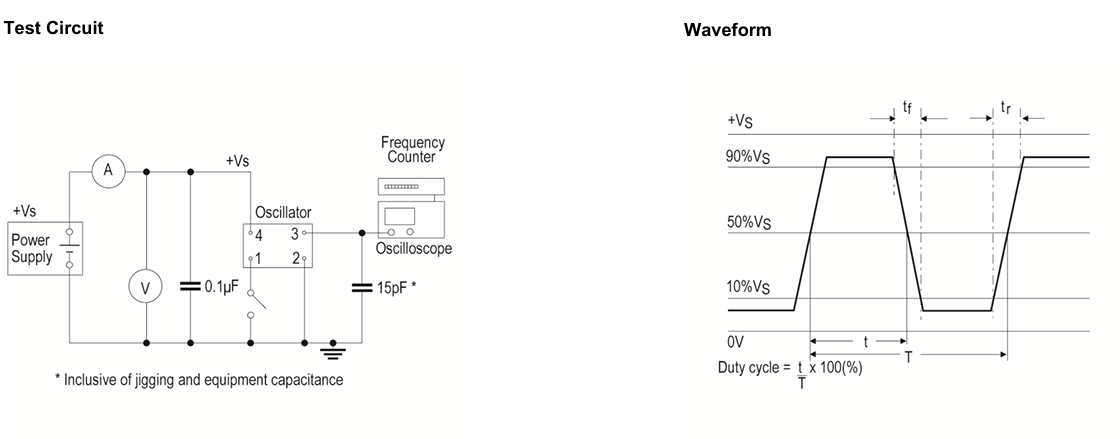

（低功耗晶体振荡器OSC2016系列测试电路与输出波形）

适用于多种应用的低功耗晶体振荡器OSC2016系列

—-Low Power Oscillator for Multiple Applications

As more customers are moving more towards smaller packaged frequency products from the 3.2 x 2.5mm footprint, Genuway Technology offers engineers 2.0 x 1.6 mm clock oscillator.

随着越来越多的客户逐渐转向尺寸更小的封装频率产品，其尺寸为 3.2 x 2.5 毫米，晶诺威科技为工程师们提供了 2.0 x 1.6 毫米的时钟晶体振荡器。

Available in 3 supply voltages 三种供电电压选项: 1.8 V, 2.5 V & 3.3 V

Housed in a miniature package of 2.0 x 1.6 x 0.75 mm

Industry Standard CMOS oscillator 行业标准 CMOS 振荡器

Stability of ±25 ppm over -40 to 85 °C 在-40至85°C范围内±25 ppm的稳定性

Suitable for many different applications, such as Audio & Multimedia Devices, Communication Devices, IoT, Industrial Devices, Navigation & Locators, Real Time Clocks and Test & Measurement Equipment.

适用于多种不同应用场合，如音频与多媒体设备、通信设备、物联网、工业设备、导航与定位器、实时时钟以及测试与测量设备。

晶振知识：Crystal Clock Oscillator 晶体时钟振荡器/晶体振荡器/有源晶振

A crystal clock oscillator (sometimes referred to as a ‘Simple Packaged Crystal Oscillator’ or SPXO) is a ‘plug and play’ quartz crystal. It combines a quartz crystal resonator with an oscillator circuit in a single package to provide a fully functioning stand-alone oscillator circuit. SPXOs are used in many applications including telecommunications, industrial and consumer electronics.

晶体时钟振荡器（有时亦被称为“简易封装晶体振荡器”或 SPXO）可以说是一种“即插即用”的石英晶体。它通过将石英晶体谐振器与振荡器电路集成于单个封装中，从而提供一种功能完备的独立振荡器电路。SPXO被广泛应用于诸多领域，包括电信、工业及消费电子产品。
