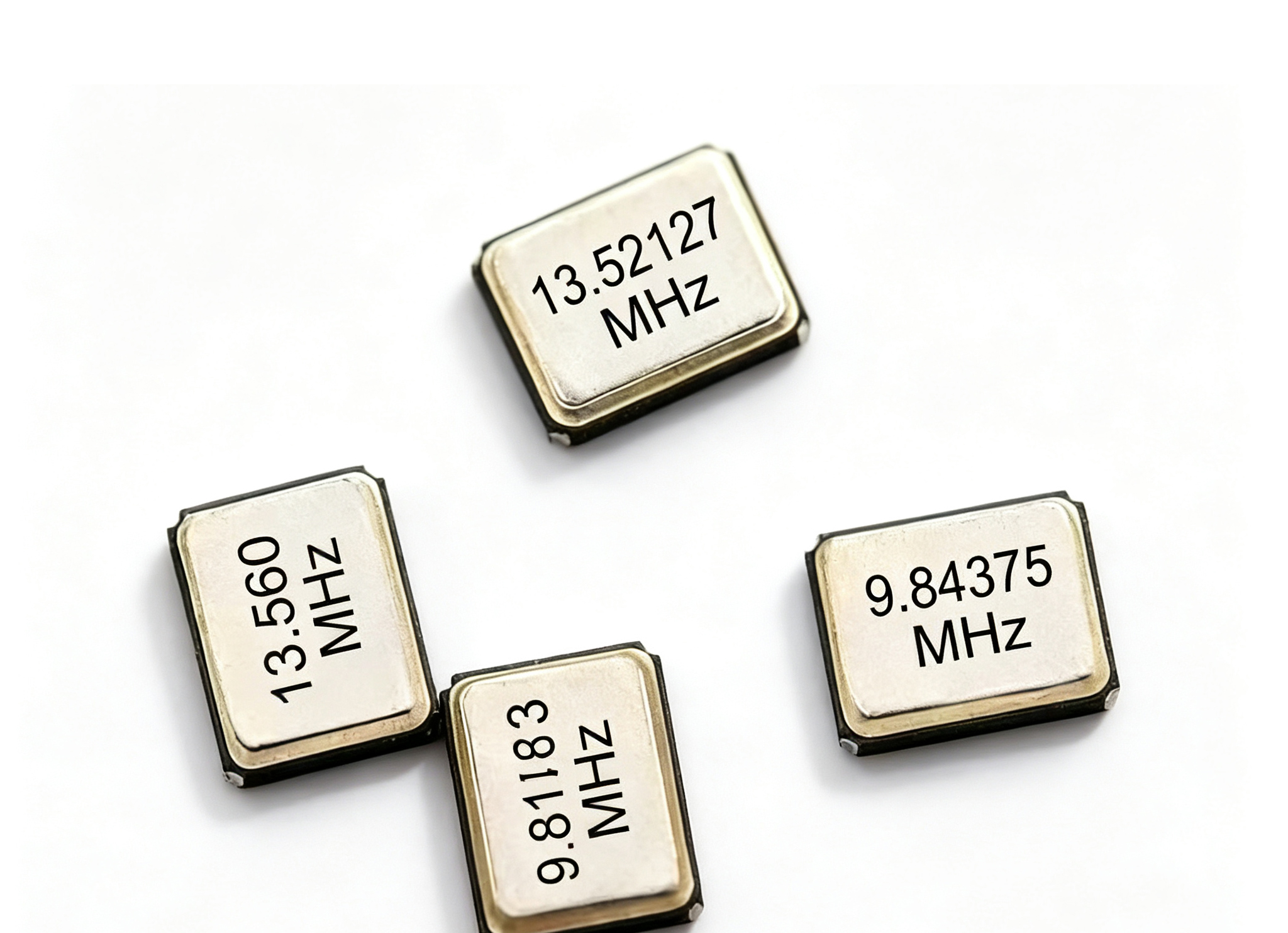

（RF射频晶振SMD3225系列：9.84375MHz/9.81183MHz/13.52127MHz/13.560MHz）

晶诺威科技产RF射频晶振电气参数，如下：

PRODUCT TYPE 晶振类型: 石英晶体谐振器/贴片式无源晶振

Dimension晶振尺寸：SMD3225-4PIN

Nominal Frequency (FL)标称频率: 9.84375MHz/9.81183MHz/13.52127MHz/13.560MHz

Loading capacitance (CL)负载电容：10pF、15pF、20pF或定制

Mode of oscillation振荡模式：Fundamental 基频

Cutting Mode晶体切型：AT Cut

Shunt Capacitance (C0)静电容：3pF

Insulation resistance绝缘阻抗：500MΩ at DC 100V

测试环境

Unless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow:

Ambient temperature : 25±3℃

Relative humidity : 40%~70%

RF射频晶振SMD3225系列内部结构

RF射频晶振13.52127MHz晶振温测数据如下：
