TCXO温补晶振32MHZ基本电气参数：

• 标称频率(OMINAL FREQUENCY): 32.000MHz
• 尺寸(Size): 2.0mm*1.6mm
• 封装类型(Type): DSB211SDN
• 料号(SPEC No.):1XXD32000PBA
• 工作电压(Supply Voltage): 1.8V
• 工作温度范围：(Operating Temperature Range): -30℃~+85℃
• 输出波形(Output Wave)：削峰正弦波（Clipped sine wave (DC-coupled)
• 频率偏差(Frequency Tolerance): ±1.5ppm (25℃)
• 温度频差(Frequency Tolerance vs Temperature): ±2ppm (-30~+85℃, Refer to frequency at 25℃ )
• 年老化率(Aging per year):1ppm/year

有关TCXO 温补晶振32MHZ规格书详情如下：

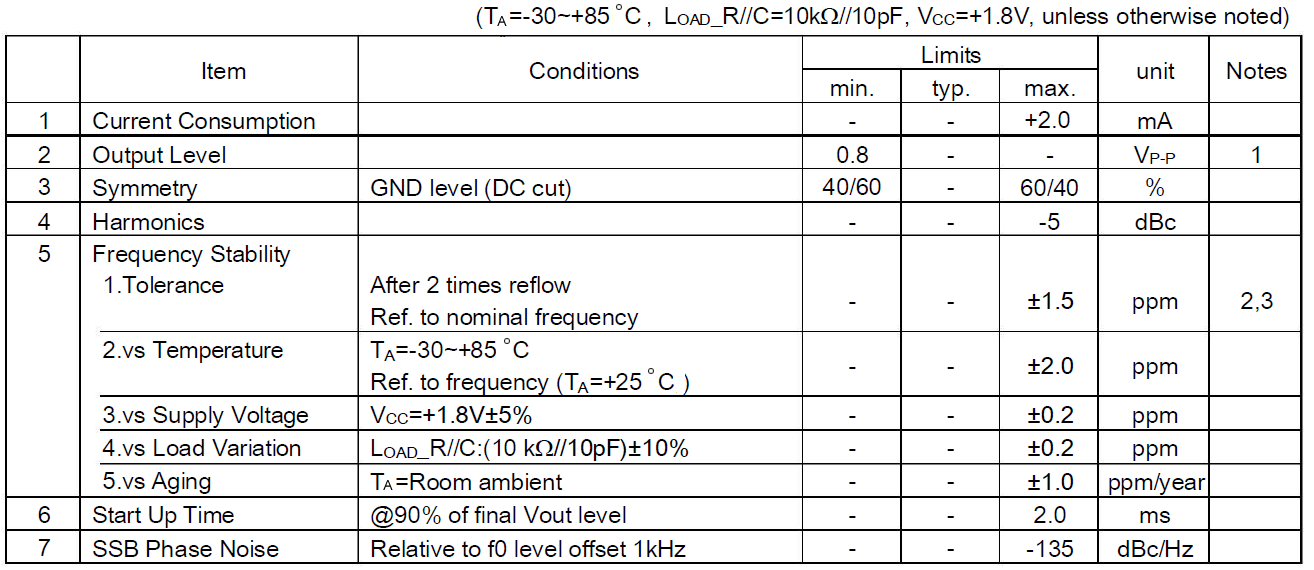

TCXO 温补晶振32MHZ电气参数(Electrical Characteristics)

建议TCXO温补晶振32MHZ应用工作环境(Recommended Operating Conditions)

TCXO温补晶振32MHZ外形及焊盘脚位说明(Outline, Pin Connections)

Notes
1. Clipped sine wave (DC-coupled)
2. T(A) =+25℃
3. Please leave after reflow in 2h or more at room ambient.

TCXO温补晶振32MHZ测试电路(Measurement Circuit)

TCXO温补晶振32MHZ回流焊说明(Reflow Profile)
