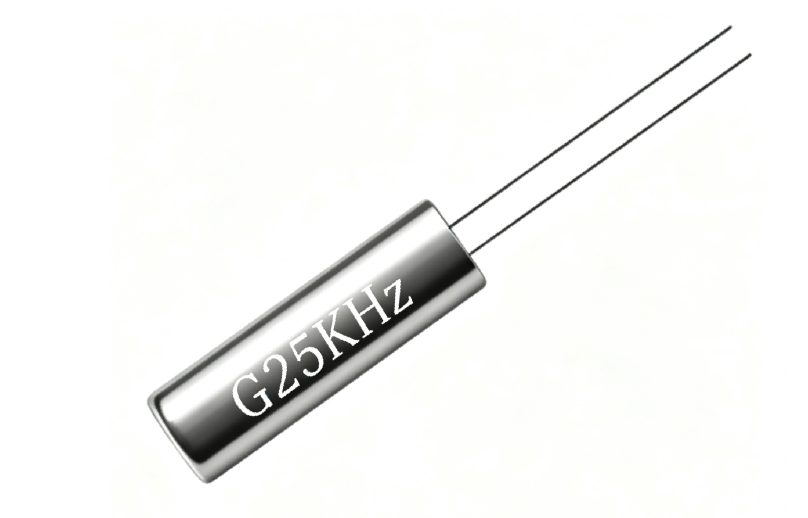

（音叉型晶振25KHz/28KHz/32KHz/38KHz/100KHz产品图例）

Inner structure音叉型晶振内部结构实物图

Inner structure音叉型晶振内部结构图

音叉型晶振25KHz/28KHz/32KHz/38KHz/100KHz电气参数电气参数如下：

Type型号： Tuning Fork音叉晶振3*8

• Size尺寸:3.0×8.0mm
• Frequency tolerance调整频差：±20ppm (at 25℃)
• Working Temperature Range工作温度(°C)：-10~+60
• Storage Temperature存储温度(°C)：-20~+70
• Load capacitance (CL)负载电容：12.5pF
• Equivalent resistance等效电阻：30KΩ max.
• Excitation level激励功率：1.0μW (2.0μW max.)

Type型号： Tuning Fork音叉型晶振2*6

• Size尺寸:2.0×6.0mm
• Frequency tolerance：±20ppm
• Working Temperature Range工作温度(°C)：-10~+60
• Storage Temperature存储温度(°C)：-20~+70
• Load capacitance (CL)负载电容：12.5pF
• Equivalent resistance等效电阻：40KΩ max.
• Excitation level激励功率：1.0μW (2.0μW max.)

Load capacitance vs Frequency：

NOTE: About tuning fork 关于音叉晶体谐振器

The two most commonly available resonators of tuning fork are 32.768KHz watch or clock crystals, and 38KHz crystals, mostly used for remote control applications.

两种最常用的音叉型晶体谐振器是32.768KHz，常用于手表或时钟，而频率为38KHz的音叉晶体，则主要用于遥控应用。

拓展阅读：Quartz Crystals kHz  石英晶体 kHz

Quartz crystals are used in a wide range of electronic applications where timing is a fundamental parameter. Owing to the high ‘Q’ factor of quartz, these crystals can deliver accurate and relatively stable timing signals to a wide range of low-frequency applications. One of the most common crystals used is the 32.768 kHz watch crystal, known for its superior performance in time-keeping and clock applications typically in internal microprocessors in laptops, mobile or cell phones, GPS devices, and virtually any device requiring accurate timekeeping, including real-time clocks (RTC), test and measurement equipment and battery powered applications.

石英晶体被广泛应用于各种需要定时作为基本参数的电子应用中。由于石英具有极高的“Q”值，这些晶体能够向广泛的低频应用领域提供精确且相对稳定的定时信号。最常用的晶体之一便是 32.768 kHz 的钟表晶体，它因在计时和时钟应用方面的卓越表现而著称，这些应用通常见于笔记本电脑、移动设备或手机中的内部微处理器、GPS 装置，以及几乎所有需要精确计时功能的设备，包括实时时钟（RTC）、测试与测量设备以及电池供电型应用。
