（无源贴片晶振SMD3225-13.52127MHz外形尺寸图）
关于无源贴片晶振SMD3225-13.52127MHz负载电容CL=15pF电气参数，说明如下：
PRODUCT TYPE: 石英晶体谐振器/贴片式无源晶振
Dimension：SMD3225
NOMINAL FREQUENCY: 13.521270MHz
Loading capacitance：15pF
GNW P/N: 08G13M52127D1
Oscillation Mode：Fundamental
Cutting Mode：AT Cut
Unless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow:
Ambient temperature : 25±3℃
Relative humidity : 40%~70%

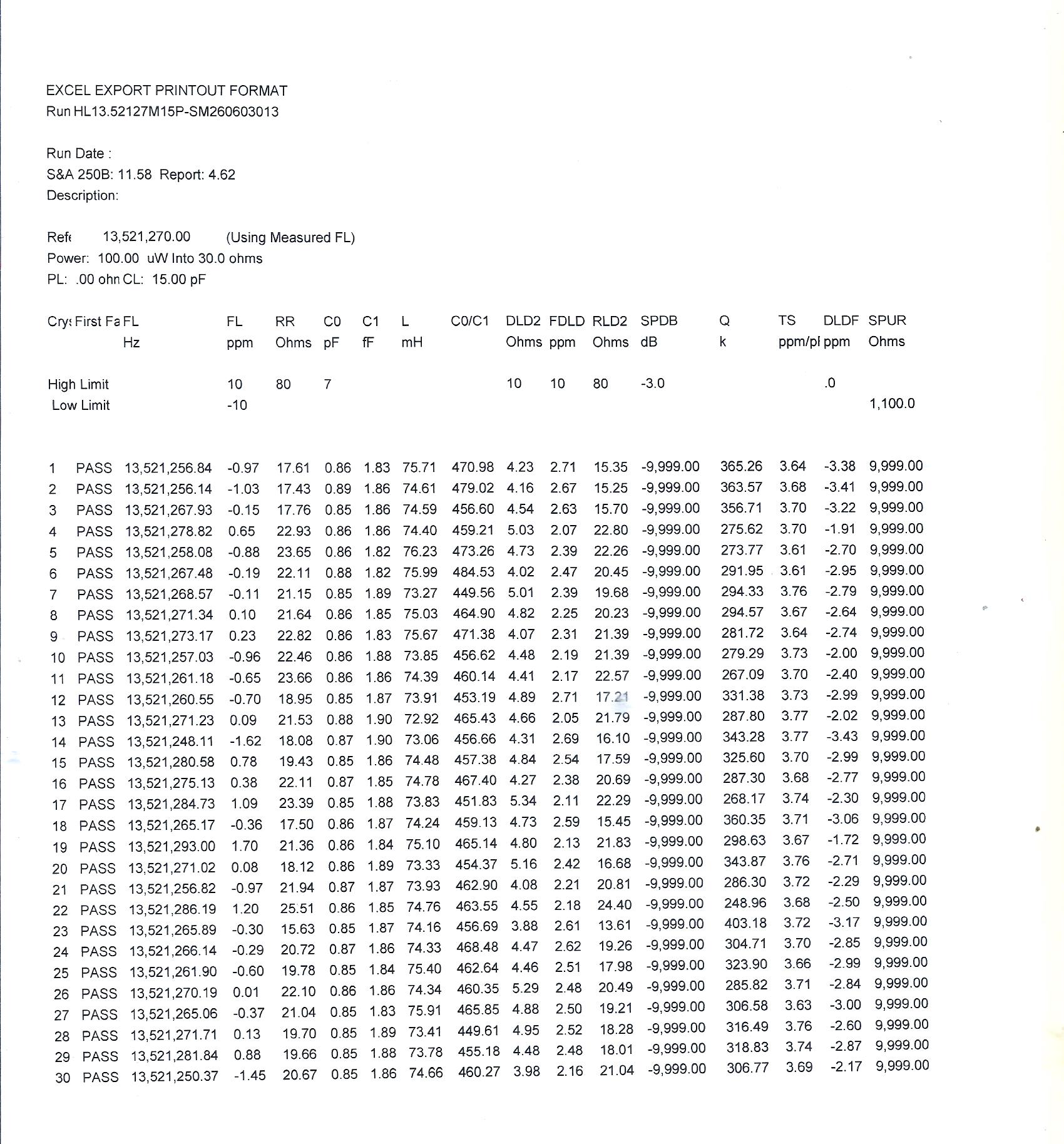

Electrical Characteristics 电气参数详情：

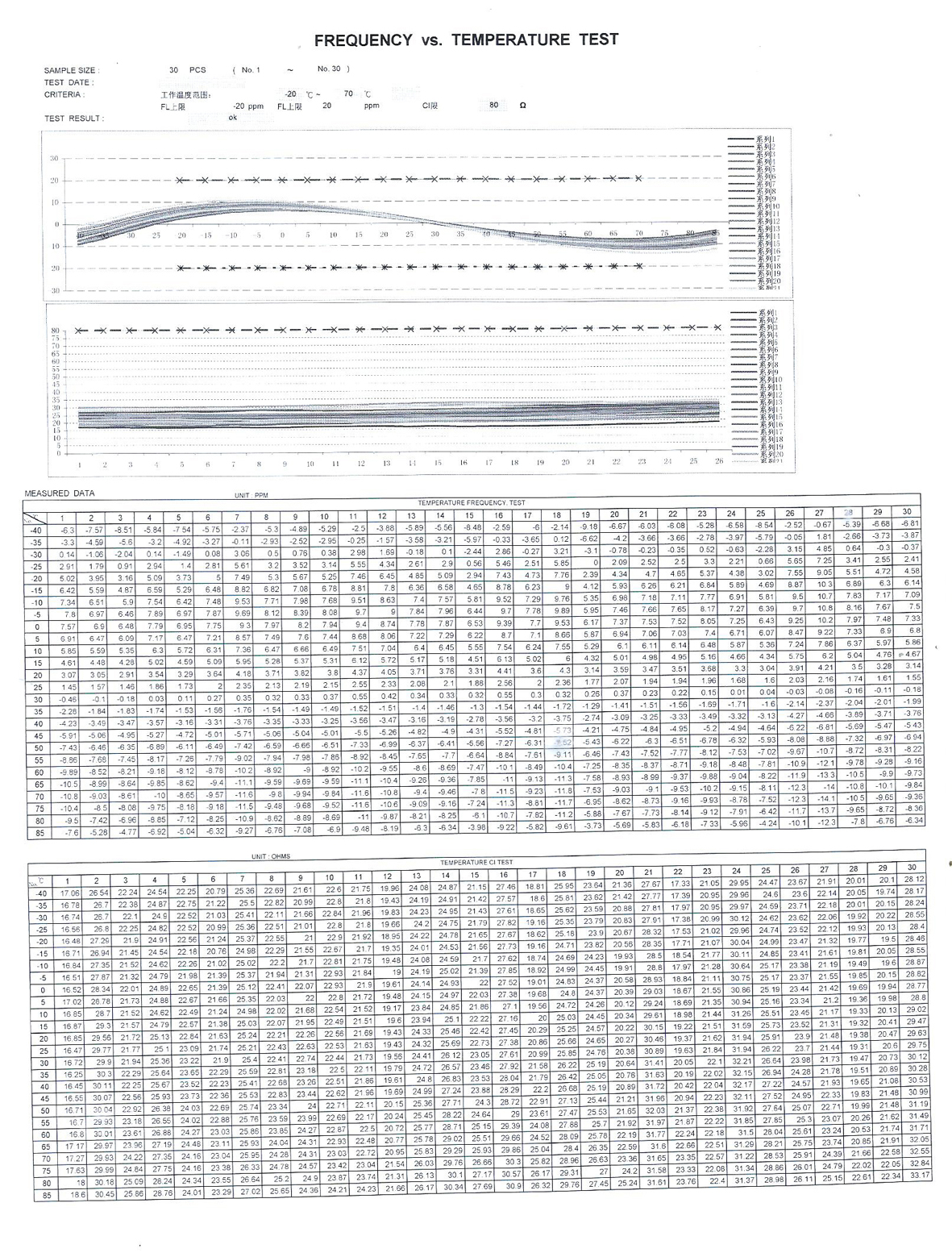

| items | Electrical Spec. | Unit | Notes | ||
| Min. | Typ. | Max. | |||
| 1. Nominal Frequency (FL)标称频率 | 13.521270 | MHz | |||
| 2. Mode of oscillation振荡模式 | Fundamental | ||||
| 3. Loading capacitance (CL)负载电容 | 15 | pF | |||
| 4. Frequency tolerance调整频差 | -10 | +10 | ppm | @ 25℃±3℃ | |
| 5. Temperature stability温度稳定性 | -20 | +20 | ppm | @-40℃~+85℃ | |
| 6. Operable temperature range工作温度 | -40 | +85 | ℃ | ||
| 7. Drive level (DL)激励功率 | 10 | 300 | μW | ||
| 8. Equivalent resistance (RR)等效阻抗 | 60 | Ω | |||
| 9. Shunt Capacitance (C0)静电容 | 3.0 | pF | |||
| 10. Insulation resistance绝缘阻抗 | 500 | MΩ | at DC 100V | ||
| 11. Storage temperature range储存温度 | -55 | +125 | ℃ | ||
| 12. Aging年老化率 | -3 | +3 | ppm/Year | 1st Year | |
INSIDE STRUCTURE内部结构
注：
脚1和脚3接时钟信号，无方向性；脚2和脚4接地。
