晶诺威科技产24.576MHz晶振SMD3225电气参数如下：

• Nominal frequency标称频率: 24.576MHz
• Mode of Oscillation振荡模式: Foundamental
• Load Capacitance负载电容: 10 pF
• Frequency Tolerance调整频差: ±10 ppm (at 25℃ ±3℃)
• Frequency Stability 频率稳定性: ±30 ppm (working temperature, reference to 25℃ )
• Working Temperature Range 工作温度范围: -40~+85℃
• Drive Level激励功率: 100 uW
• Series Resonant Resistance RR串联谐振电阻: 40 Ω max.
• Shunt Capacitance静电容: 7 pF
• Aging老化率: 3 ppm/year
• Storage Temperature Range存储温度: 40~+85℃
• Unit Weight单体净重: 0.02 ± 0.005 g

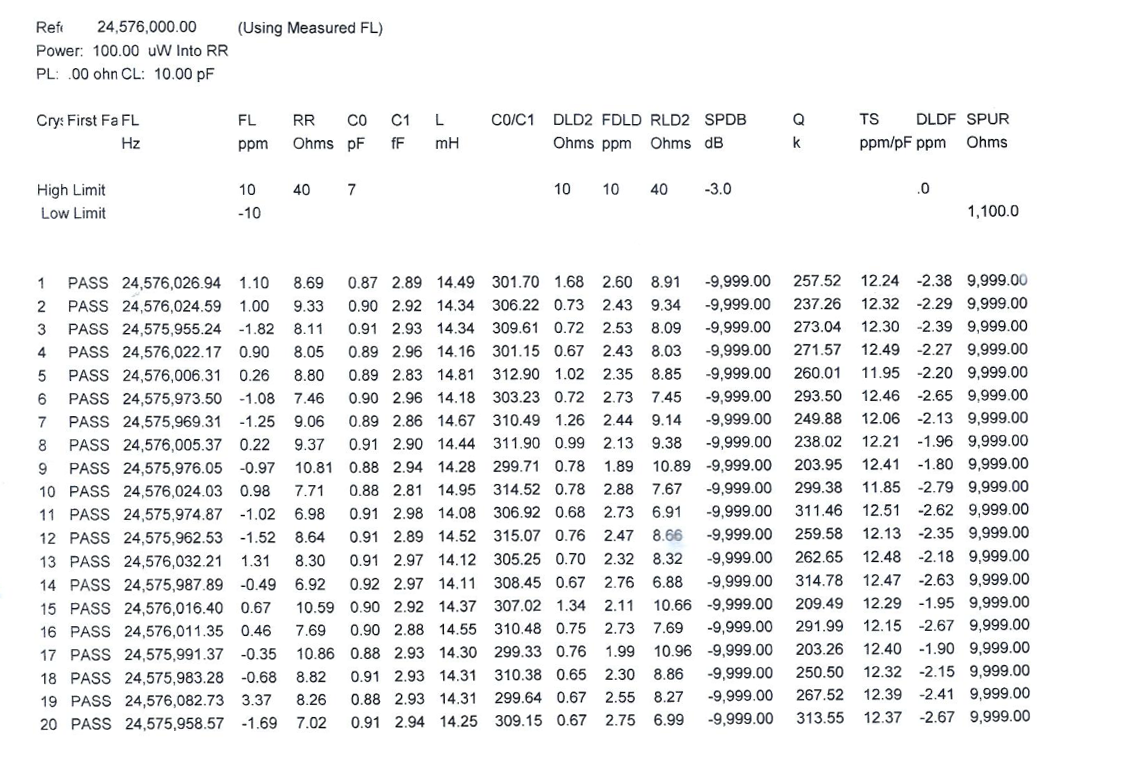

24.576MHz晶振SMD3225常温（at 25℃ ±3℃）测试数据

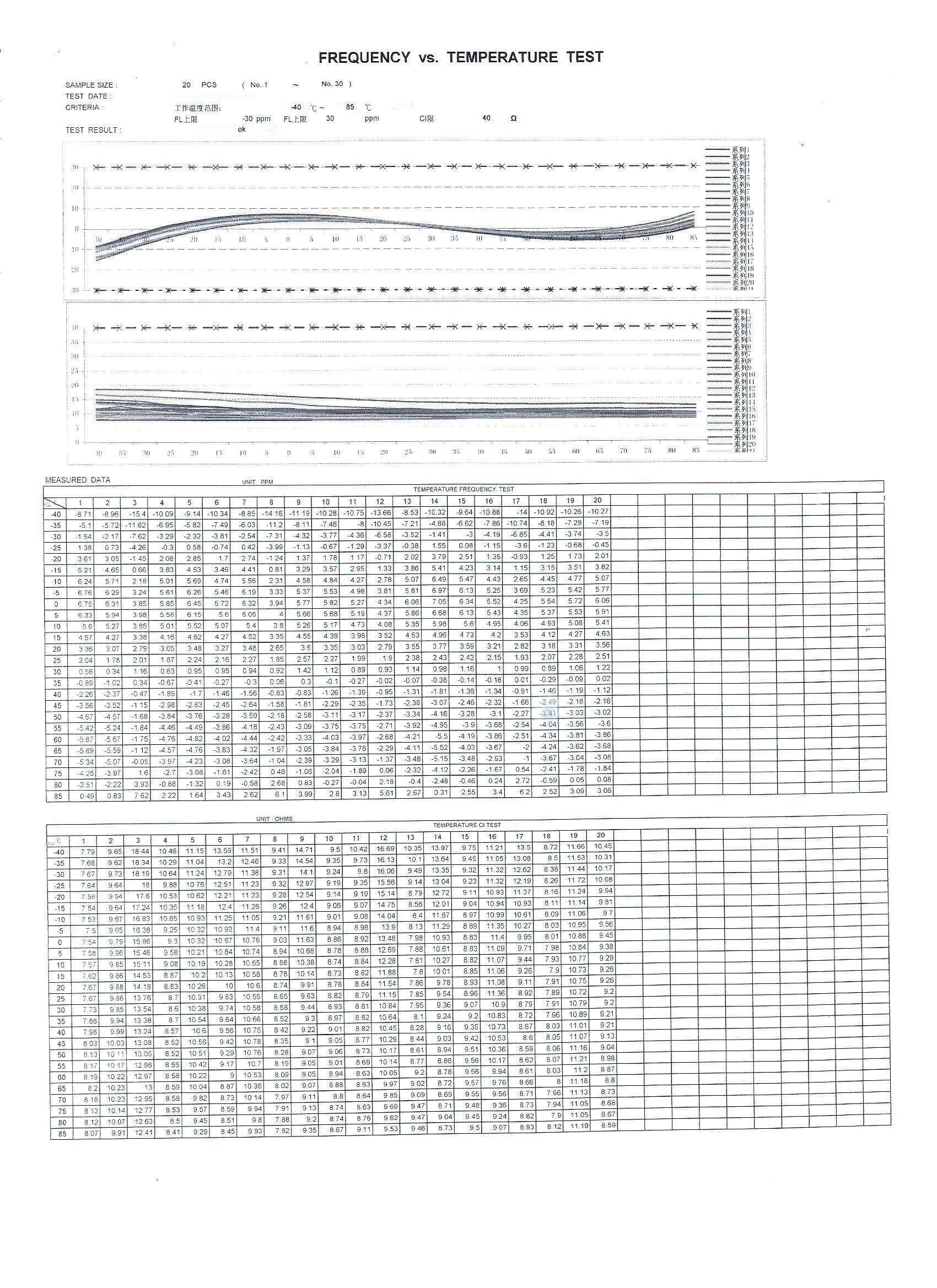

24.576MHz晶振SMD3225温测（-40~+85℃）数据：频率变化+电阻变化
