关于12.8MHz VC-TCXO压控温补晶振1XTV12800PDA电气参数，介绍如下：

主要参数：

NOMINAL FREQUENCY标称频率：12.8MHz

TYPE类型：VC-TCXO压控温补晶振

MODEL NAME型号： DSA321SDN

SPEC NO. 晶振料号：1XTV12800PDA

SUPPLY VOLTAGE供电电压：3V

CONTROL RANGE压控范围：Vcont=+1.5V±1.0V   ±9ppm~15ppm

OUTPUT输出类型：Clipped Sine Wave 削峰正弦波

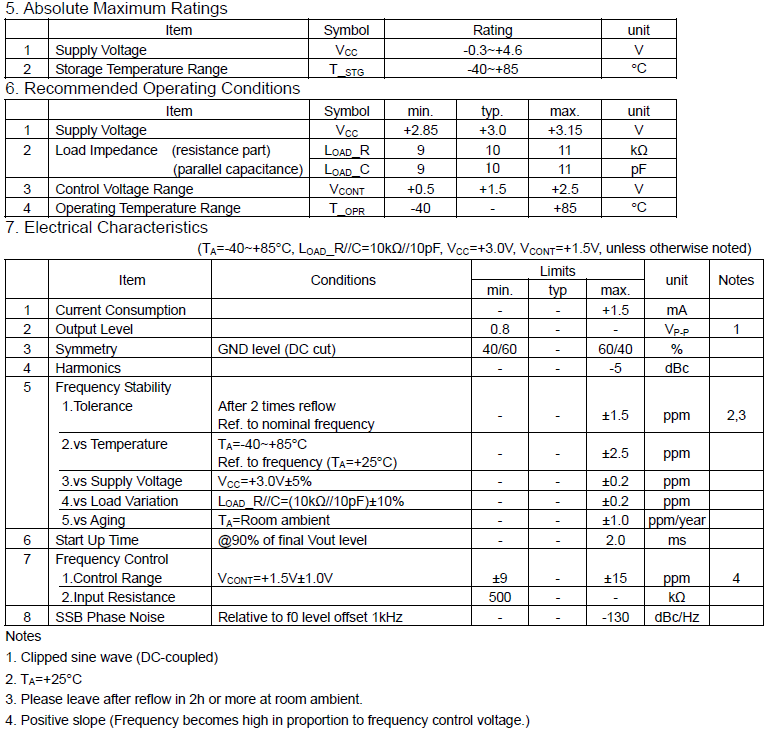

电气参数详情：

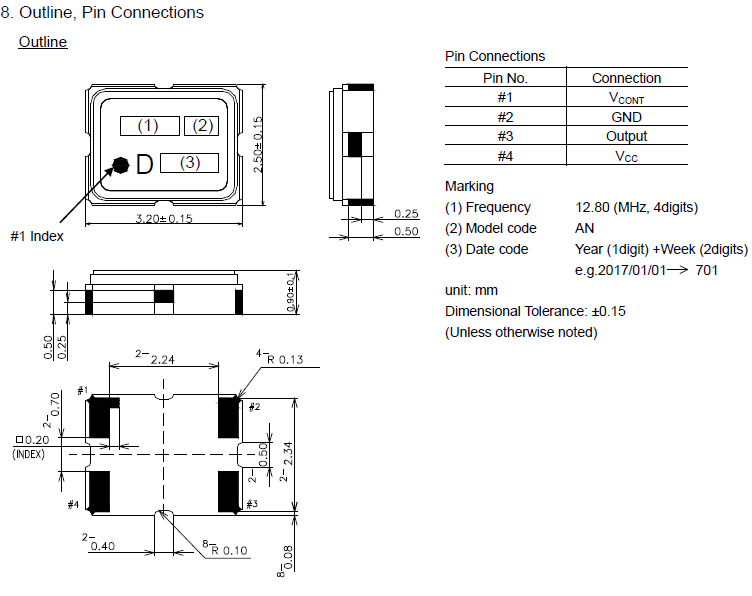

尺寸及引脚说明：

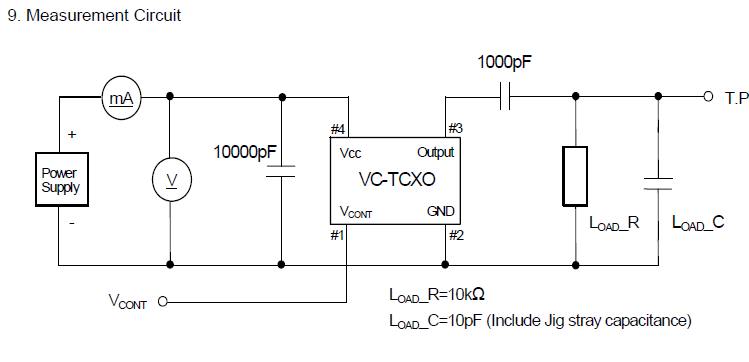

测试电路：

What is a voltage controlled temperature compensated crystal oscillator?

Temperature Compensated Crystal Oscillators (TCXOs) deliver excellent temperature characteristics combined with low power consumption and fast warmup. Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXOs) combine the same excellent temperature characteristics, low power consumption and fast warmup with a voltage control function to allow precise tuning of the output frequency after PCB assembly.

Voltage control can also be used during operational life, to compensate for any effects of aging as well as offering the ability to pull back to nominal frequency where there is a change of circuit conditions. TCXOs and VC-TCXOs are used where the stability of a standard Crystal Clock Oscillator is insufficient.
