关于25.6MHz TCXO DSB221SDN 1XXB25600MAA规格参数，晶诺威科技介绍如下：
主要参数：
NOMINAL FREQUENCY 标称频率：25.6MHz
TYPE 类型：TCXO温补晶振
MODEL NAME型号： DSB221SDN
SPEC NO. 晶振料号：1XXB25600MAA
SUPPLY VOLTAGE 供电电压：3.3V
OUTPUT输出类型：Clipped Sine Wave 削峰正弦波

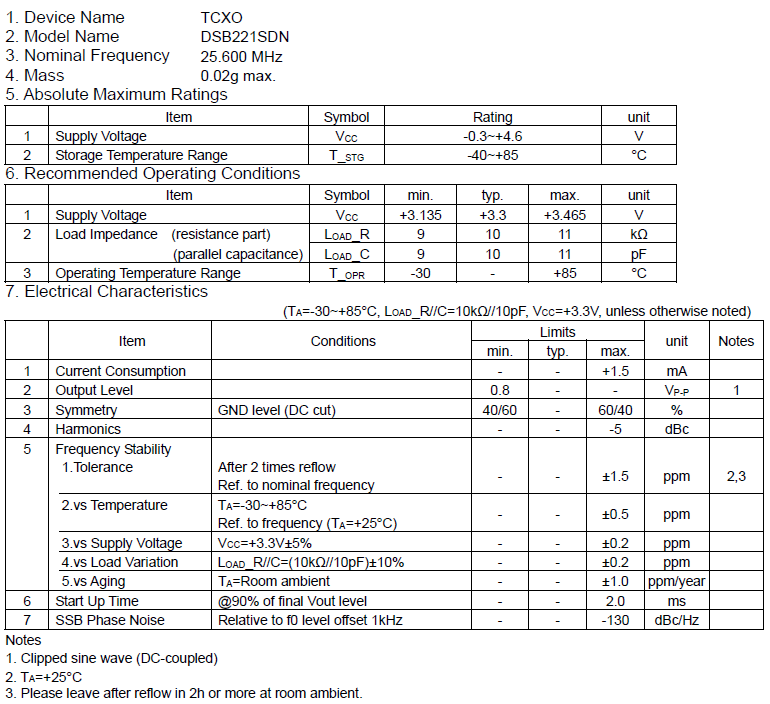

电气参数详情：

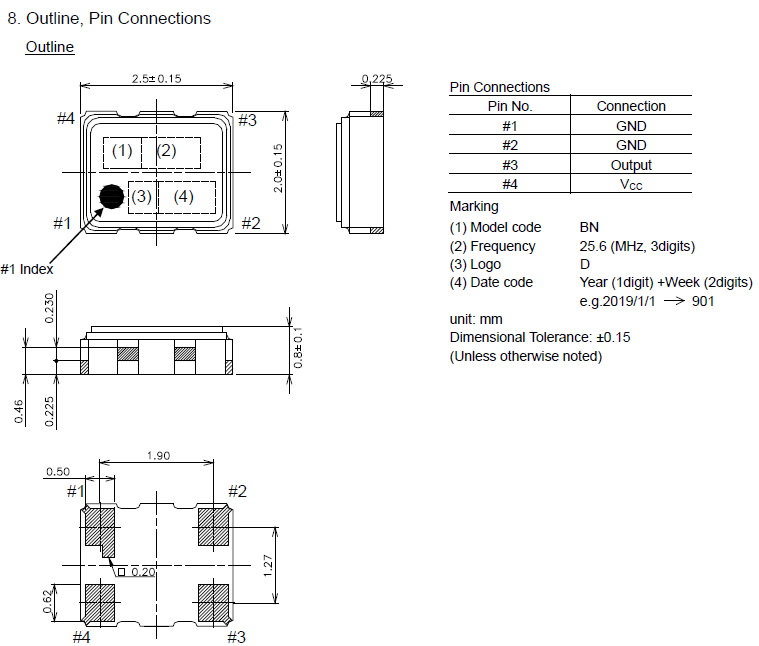

尺寸及引脚说明：

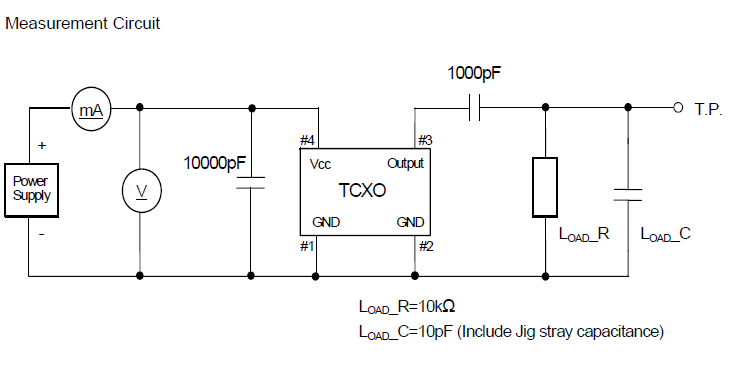

测试电路：
Temperature Compensated Crystal Oscillators (TCXO)
TCXO is the Crystal Oscillator with good temperature characteristics of Crystal unit and opposite temperature characteristics circuit (temperature compensation circuit) across a wide temperature range.
What is a voltage controlled temperature compensated crystal oscillator?
Temperature Compensated Crystal Oscillators (TCXOs) deliver excellent temperature characteristics combined with low power consumption and fast warmup. Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXOs) combine the same excellent temperature characteristics, low power consumption and fast warmup with a voltage control function to allow precise tuning of the output frequency after PCB assembly.
Voltage control can also be used during operational life, to compensate for any effects of aging as well as offering the ability to pull back to nominal frequency where there is a change of circuit conditions. TCXOs and VC-TCXOs are used where the stability of a standard Crystal Clock Oscillator is insufficient.
