（38.4MHz VC-TCXO压控温补晶振DSA221SDN测试电路）
关于±0.5ppm 38.4MHz VC-TCXO压控温补晶振DSA221SDN，晶诺威科技介绍如下：

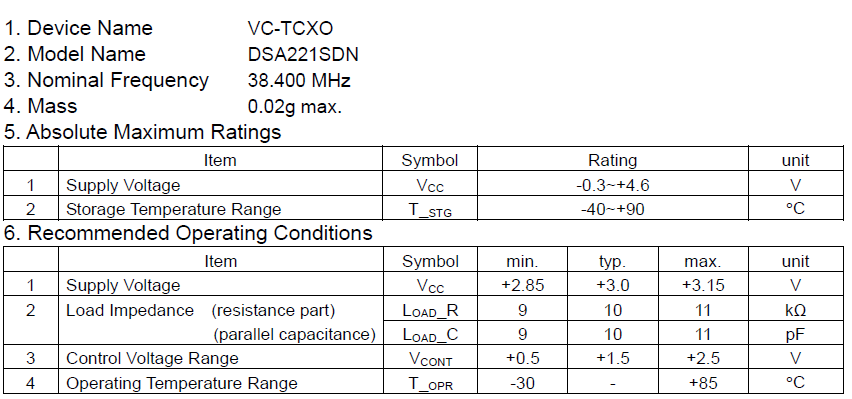

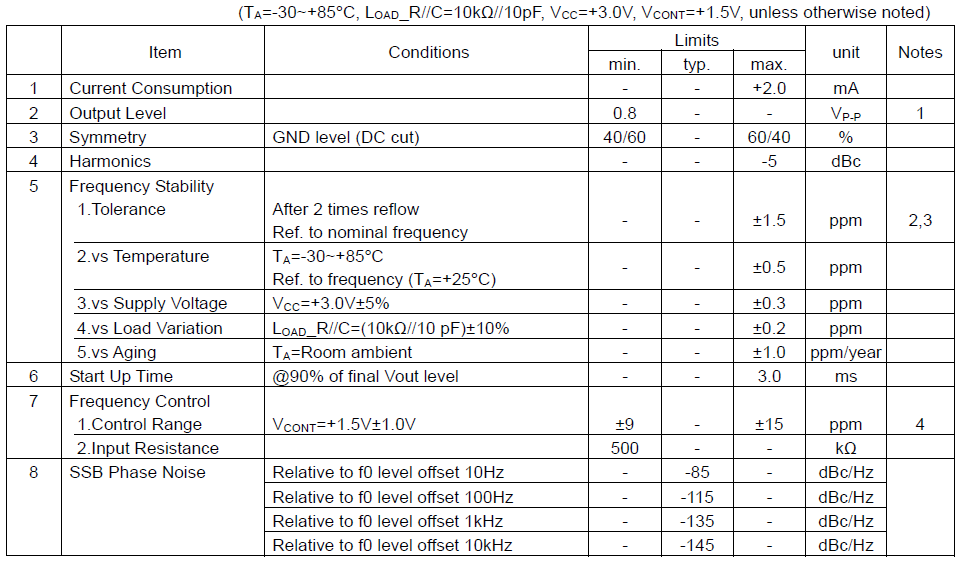

1、主要规格参数：
Notes
1. Clipped sine wave(DC-coupled)
2.TA=+25C
3. Please leave after reflow in 2h or more at room ambient.
4. Positive slope (Frequency becomes high in proportion to frequency control voltage.)

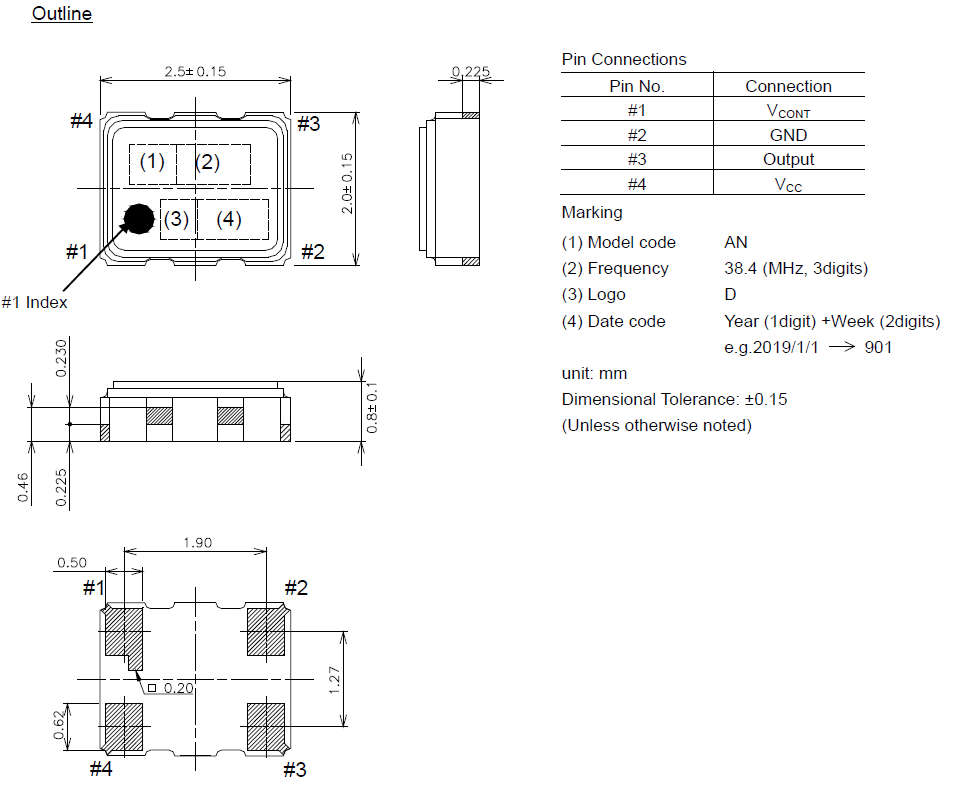

2、外观尺寸及引脚说明
3、±0.5ppm 38.4MHz VC-TCXO压控温补晶振DSA221SDN概要
规格及料号：DSA221SDN,7DE03840A0C
What is a voltage controlled temperature compensated crystal oscillator?
Temperature Compensated Crystal Oscillators (TCXOs) deliver excellent temperature characteristics combined with low power consumption and fast warmup. Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXOs) combine the same excellent temperature characteristics, low power consumption and fast warmup with a voltage control function to allow precise tuning of the output frequency after PCB assembly.
Voltage control can also be used during operational life, to compensate for any effects of aging as well as offering the ability to pull back to nominal frequency where there is a change of circuit conditions. TCXOs and VC-TCXOs are used where the stability of a standard Crystal Clock Oscillator is insufficient.
